RRS-1903 Tilt Mount

Vertical Antenna Tilting Hinge Mount • Several new versions and variations coming in early 2026Original RRS-1903 by Raymond Sult N9KGC available now. Similar to the old MFJ-1903 in appearance only. This tilt mount is far stronger and much more robust. New and improved design. Thicker and stronger material. Improved hinge design using a larger single straight-thru 7/16 bolt. - FREE SHIPPING Now Through January 2026 -More Info or to Buy Now Click Here
Listen to the audio review. Click Here
Who is Raymond Sult ? Click Here

Product
Product

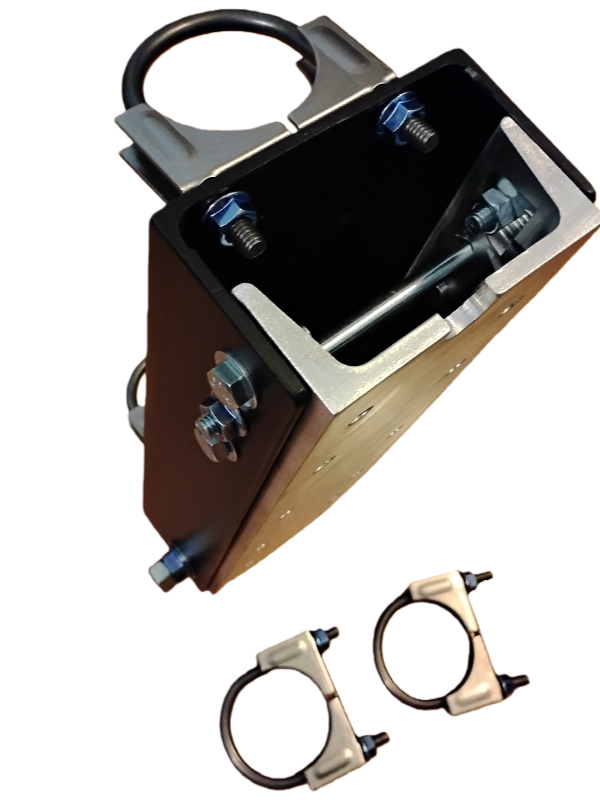

RRS-1903

Vertical Base Antenna Tilt Mount The strongest antenna tilt mount on the market. Made of 6061 aluminum structural channel. Quarter inch thick. (0.25 inch) And steel used to fabricate the outer channel.These are fabricated after your order is placed. Please allow four (4) business days for this to leave our shop.Contact me if you need a modified version or special request.

  • Individually Made. Not Mass Produced

  • Made in Evansville Indiana USA

  • Customizations available. Contact me if you have a special request for yours !

Makes installation and repairs or adjustments and changes to your antenna easier and safer.

$158.25

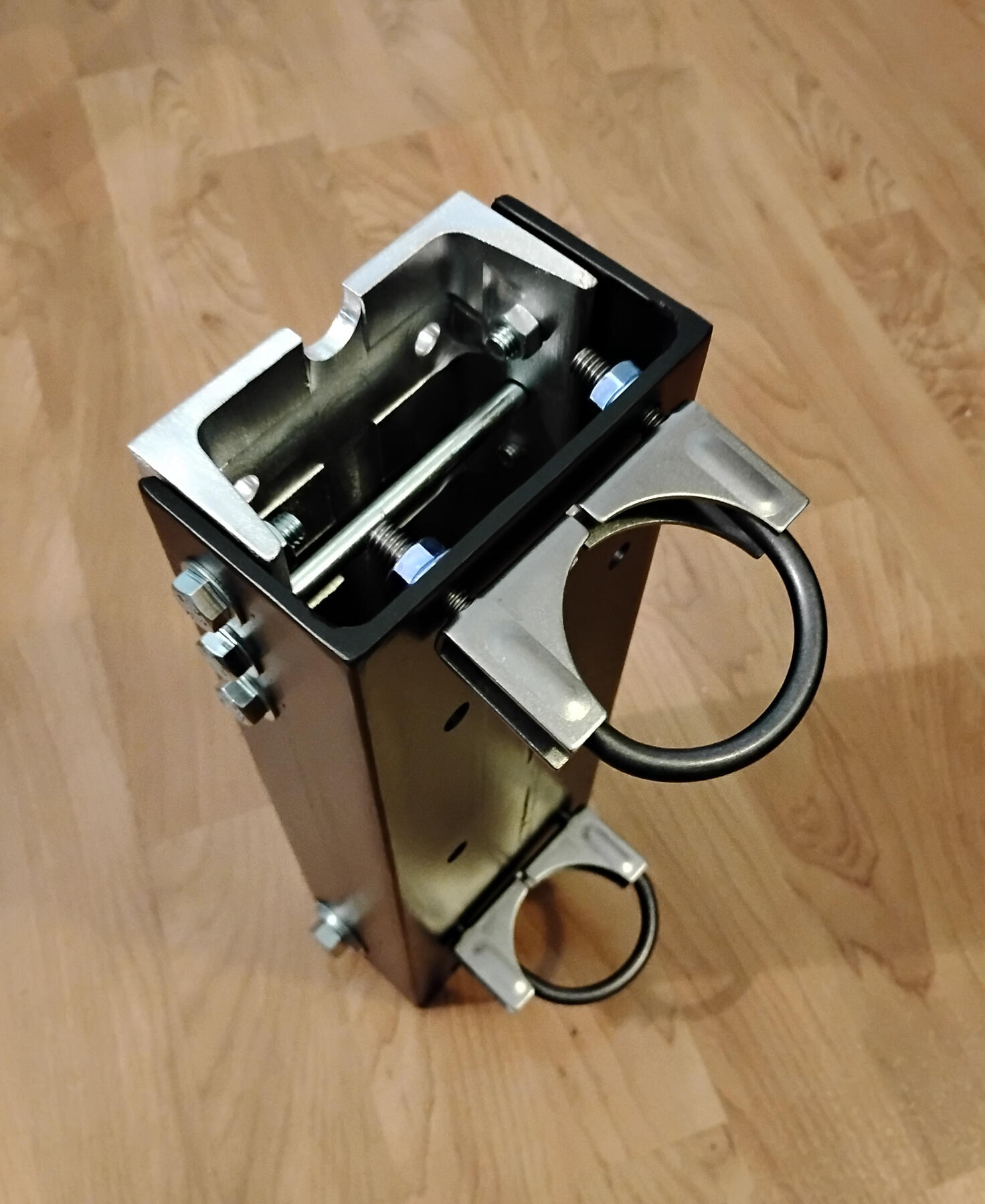

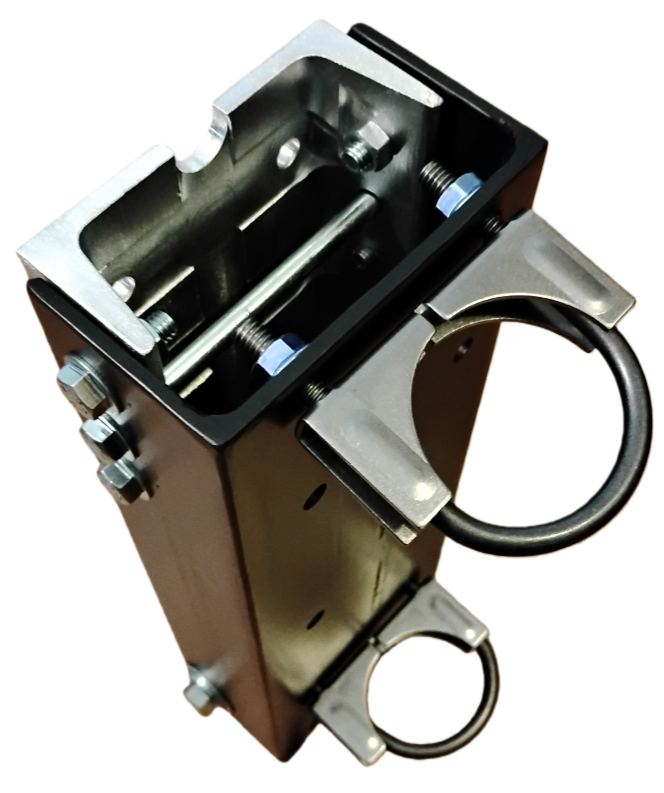

More DetailsVertical Base Tilt-Over Antenna Mount. This new and improved design is similar to the MFJ-1903 Tilt Mount and the Intellitron AB-1612 tilt mount for vertical base antennas. Similar in appearance, superior in design and strength. Far stronger and very much improved over others in the market.Individually made not mass produced. Fabricated from 6061 four inch aluminum channel (quarter inch thick) and mild steel angle that is used to make the outer larger channel. There is No Flex with this new stronger design !
Pivots / hinges on a larger more robust pin / bolt rather than the two 5/16 bolts that are used on other similar tilt mounts . Is secured in place when in the "Up" position by two bolts that thread into the channel rather than using nuts and bolts as the 1903 did. This allows for easier securing without having to reach inside the channel to hold the nut with a wrench.This standard version comes with four (4) U-bolts. Two for the "Antenna" tilt-over side and two for the stationary side. Included U-bolts work with mast or pipe up to two (2) inch outside diameter.Length: 13.4 inches
Width: 4.5 inches
Depth: 3 inches
Weight: 10.50 lbsShips FREE in the U S. ! Made in the USA$158.25Retails for $178.00 on my Amazon Store and my eBay StorePlease allow four (4) business days for this to leave my shop. This item is fabricated after it is ordered. Can be ordered and purchased even when it says "Out of Stock".If you need a custom or modified version of this item (or ANY item I make) please contact me with your request .73 from N9KGC
2NA201

Version 2 Coming Soon

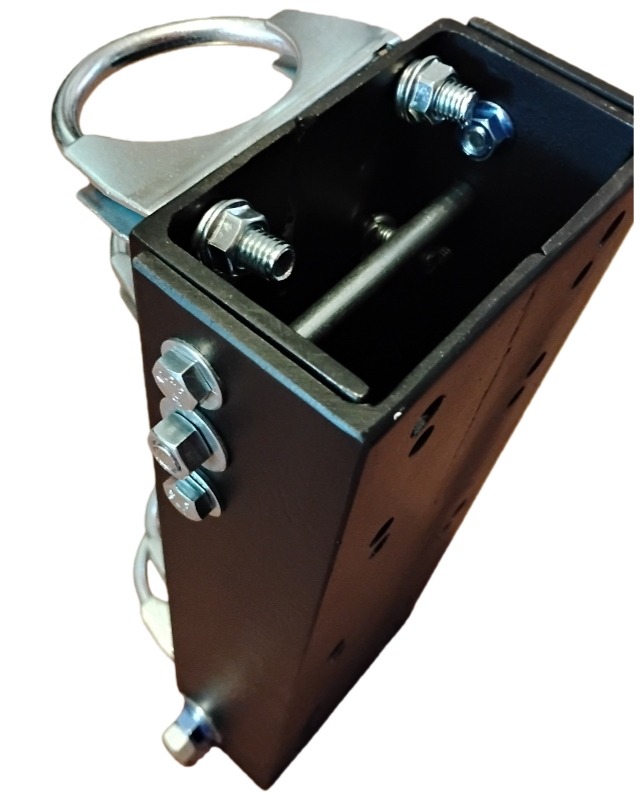

All Steel Version (Rev. 3)

  • **

  • **

  • **

Check back for more info.

$179.00

*Order CompleteThank you for your purchase ! I appreciate it.
You will receive an email shortly confirming your order.Allow four (4) business for your item to be fabricated and to leave my shop.
You will receive a tracking number when it ships.Again, Thank you for your business!73 from N9KGC
Ray S.
Raymond Sult SPE
Evansville, Indiana USA*
